您現在的位置： 首頁 >> 產品中心 >> IGBT驅動電路和驅動板 >> concept 驅動板 >> SCALE Plug-and-play Drivers
 SCALE Driver Cores   SCALE Plug-and-play Drivers

SCALE Plug-and-play Drivers系列產品型號 （點擊某型號，可以查看該產品的pdf資料）

【SCALE-1 Plug-and-play Drivers】 & 【SCALE-2 Plug-and-play Drivers】
【SCALE-1型 即插即用驅動器】 和 【SCALE-2型 即插即用驅動器】 專用型驅動器
型  號 IGBT 等級 信號通道
& 驅動功率 		門極電流 各廠家IGBT所配驅動器
Iinfineon Fuji Mitsubishi
SCALE-1 Plug-and-play Drivers

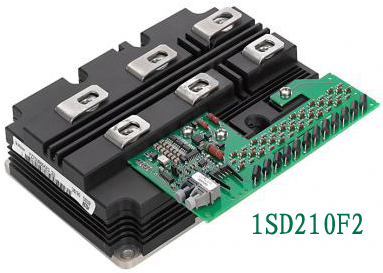

1SD210F2 4.5kV- 6.5 kV  200A-1200 A 1*2W -6A/+10A Iinfineon：1SD210F2-Fx200R65KF21SD210F2-Fx400R65KF2
1SD210F2-FZ600R65KF21SD210F2-FZ250R65KE3
1SD210F2-FZ500R65KE3 1SD210F2-FZ600R65KE31SD210F2-FZ750R65KE3
Mitsubishi：1SD210F2-CM200HG-130H1SD210F2-CM600HG-130H

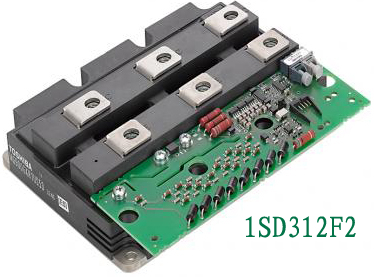

1SD312F2 4.5kV
400A-1200 A 		1*3W +12A Mitsubishi：1SD312F2-CM400HB-90H1SD312F2-CM600HB-90H1SD312F2-CM900HB-90H1SD312F2-CM900HC-90H1SD312F2-CM1200HC-90R

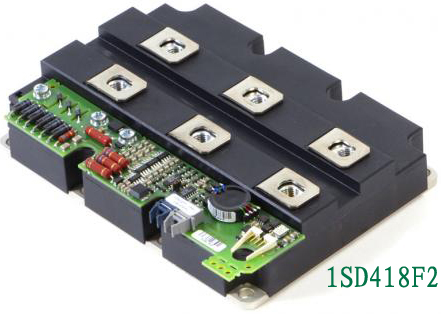

1SD418F2 1.7 kV-3.3kV 800 A- 2400 A 1*4W ±18A Iinfineon：1SD418F2-FZ2400R17KF61SD418F2-FX800R33KF2
1SD418F2-FZ1200R33KF21SD418F2-FZ1200R33KL2C
Mitsubishi：1SD418F2-CM1200HC-50H1SD418F2-CM1200HB-66H
1SD418F2-CM1200HC-66H1SD418F2-CM800E2C-66H

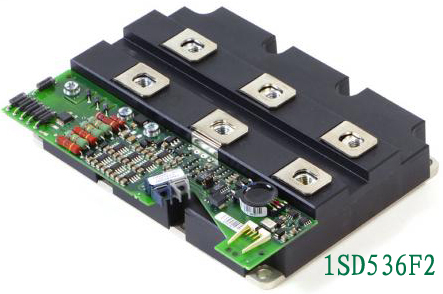

1SD536F2 1.2 kV to 3.3 kV 400 A to 3600 A 1*5W ±36A Iinfineon：1SD536F2-FZ2400R12KE31SD536F2-FZ3600R12KE3
1SD536F2-FD1200R17KE3-K_B21SD536F2-FZ1600R17HP4_B2
1SD536F2-FZ1600R17KE31SD536F2-FZ1600R17KE3_B2
1SD536F2-FZ2400R17HP4_B21SD536F2-FZ2400R17HP4_B29
1SD536F2-FZ2400R17KE31SD536F2-FZ2400R17KF6
1SD536F2-FZ3600R17KE31SD536F2-FD1000R33HE3-K
1SD536F2-FD400R33KF2C1SD536F2-FX800R33KF2
1SD536F2-FX800R33KF21SD536F2-FZ1000R33HL3
1SD536F2-FZ1200R33KF21SD536F2-FZ1200R33KL2C
1SD536F2-FZ1500R33HE31SD536F2-FZ1500R33HL3
Fuji：1SD536F2-1MBI1200U4C-1201SD536F2-1MBI1600U4C-120
1SD536F2-1MBI3600U4D-1201SD536F2-1MBI1200U4C-170
1SD536F2-1MBI1600U4C-1701SD536F2-1MBI2400U4D-170
1SD536F2-1MBI3600U4D-170
Mitsubishi：1SD536F2-CM1200E4C-34N 1SD536F2-CM1800HC-34N
1SD536F2-CM2400HC-34N1SD536F2-CM2400HCB-34N
1SD536F2-CM1200HC-50H1SD536F2-CM1200HB-66H
1SD536F2-CM1200HC-66H1SD536F2-CM1500HC-66R
1SD536F2-CM800E2C-66H1SD536F2-CM800HB-66H
1SD536F2-CM800HC-66H

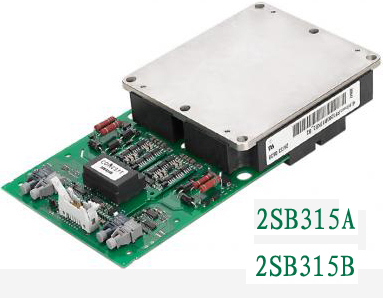

2SB315A 1.2 kV to 1.7 kV 800 A to 1200 A 2*3W ±15A Iinfineon：2SB315A-FF800R12KE3
2SB315A-FF1200R17KE3_B22SB315A-FF800R17KF6
Fuji：2SB315A-2MBI800U4G-120
2SB315A-2MBI800U4G-1702SB315A-2MBI800VT-170E
Mitsubishi：2SB315A-CM1200DC-34N2SB315A-CM800DZ-34H
2SB315B 1.2kV - 1.7kV 800A - 1200A 2*3W ±15A Iinfineon：2SB315B-FF800R12KE3
2SB315B-FF1200R17KE3_B22SB315B-FF800R17KF6
Fuji：2SB315B-2MBI800U4G-120
2SB315B-2MBI1200U4G-1702SB315B-2MBI800U4G-170
Mitsubishi：2SB315B-CM1200DC-34N2SB315B-CM800DZ-34H

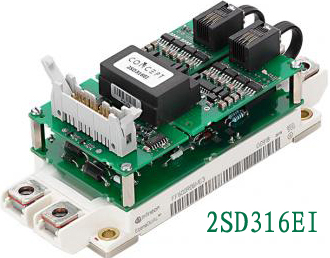

2SD316EI 1.2kV - 1.7kV
150A - 450A		 2*3W +16A/-6A Iinfineon：2SD316EI-12 with DB01-FF150R12ME3G
2SD316EI-12 with DB01-FF225R12ME3
2SD316EI-12 with DB01-FF300R12ME3
2SD316EI-12 with DB01-FF450R12ME3
2SD316EI-12 with DB01-FF450R12ME4
2SD316EI-17 with DB01-FF150R17ME3G
2SD316EI-17 with DB01-FF300R17ME3
2SD316EI-17 with DB01-FF450R17ME3

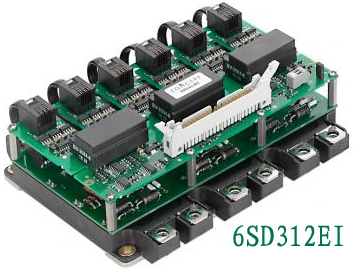

6SD312EI 1.2 kV - 1.7 kV

150A - 450A		 6*3W +12 A / -6 A Fuji： 6SD312EI-12 with EB01-6MBI225U4-120
6SD312EI-17 with EB01-6MBI450U4-170
Iinfineon：6SD312EI-12 with EB01-FS150R12KE3G
6SD312EI-12 with EB01-FS225R12KE3
6SD312EI-12 with EB01-FS300R12KE3
6SD312EI-12 with EB01-FS450R12KE3
6SD312EI-12 with EB01-FS450R12KE4
6SD312EI-17 with EB01-FS150R17KE3G
6SD312EI-17 with EB01-FS300R17KE3
6SD312EI-17 with EB01-FS450R17KE3
SCALE-2 Plug-and-play Drivers
1SP0335
 3.3 kV - 6.5 kV
250A - 1200A		 1*23W ±35A 各廠家通用：1SP0335x2xx-331SP0335x2xx-451SP0335x2xx-65
Iinfineon：1SP0335x2xx-FZ800R33KL2C_B5
1SP0335x2xx-FZ1200R33KL2C_B51SP0335x2xx-FZ1200R45KL3_B5
1SP0335x2xx-FZ200R65KF21SP0335x2xx-FZ250R65KE3
1SP0335x2xx-FZ400R65KF21SP0335x2xx-FZ500R65KE3
1SP0335x2xx-FZ600R65KE31SP0335x2xx-FZ750R65KE3
1SP0335D2Sx-FZ750R65KE3
Mitsubishi：1SP0335x2xx-CM600HG-90H
1SP0335x2xx-CM900HG-90H
1SP0335x2xx-CM1200HG-90R1SP0335x2xx-CM750HG-130R
1SP0340 4.5 kV 1*1.3W ±35A 各廠家通用：1SP0340x2xx-45
1SP0635 1.2kV - 3.3kV
800A - 3600A 		1*3W ±35A 各廠家通用：1SP0635x2xx-121SP0635x2xx-171SP0635x2xx-33
Iinfineon：1SP0635x2xx-FZ1200R12HP41SP0635x2xx-FZ2400R12HP4
1SP0635x2xx-FZ3600R12HP41SP0635x2xx-FZ1800R17HP4_B29
1SP0635x2xx-FZ3600R17HP41SP0635x2xx-FZ1000R33HE3
1SP0635x2xx-FZ1000R33HL31SP0635x2xx-FZ1200R33HE3
1SP0635x2xx-FZ1200R33KF2C1SP0635x2xx-FZ1500R33HE3
1SP0635x2xx-FZ1500R33HL3
Fuji：1SP0635x2xx-1MBI1600VR-170E
1SP0635x2xx-1MBI800UG-3301SP0635x2xx-1MBI1200UE-330
1SP0635x2xx-1MBI1500UE-330
Mitsubishi：1SP0635x2xx-CM800HC-66H
1SP0635x2xx-CM1000HC-66R1SP0635x2xx-CM1200HC-66H
1SP0635x2xx-CM1500HC-66R

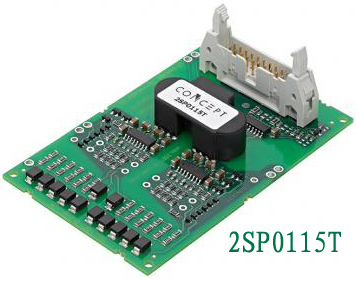

2SP0115T 600V - 1700V
150A - 600A		 2*1W +15A/-8A 各廠家通用：2SP0115T2Ax-06  2SP0115T2Ax-122SP0115T2Ax-17
Iinfineon：2SP0115T2Ax-FF450R06ME3
2SP0115T2Ax-FF600R06ME32SP0115T2Ax-FF150R12ME3G
2SP0115T2Ax-FF225R12ME42SP0115T2Ax-FF300R12ME3
2SP0115T2Ax-FF300R12ME42SP0115T2Ax-FF450R12ME3
2SP0115T2Ax-FF450R12ME42SP0115T2Ax-FF600R12ME4
2SP0115T2Ax-FF225R17ME42SP0115T2Ax-FF300R17ME3
2SP0115T2Ax-FF300R17ME42SP0115T2Ax-FF450R17ME3
2SP0115T2Ax-FF450R17ME42SP0115T2Ax-FF600R17ME4
Fuji：2SP0115T2Ax-2MBI225VN-120-502SP0115T2Ax-2MBI300VN-120-50
2SP0115T2Ax-2MBI450VN-120-502SP0115T2Ax-2MBI600VN-120-50
2SP0115T2Ax-2MBI300VN-170-502SP0115T2Ax-2MBI450U4N-170-50
2SP0115T2Ax-2MBI450VN-170-502SP0115T2Ax-2MBI550VN-170-50
Mitsubishi：2SP0115T2Ax-CM200DX-24S
2SP0115T2Ax-CM300DX-24S2SP0115T2Ax-CM450DX-24S

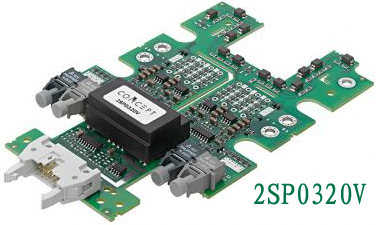

2SP0320 1200V - 1700V
450A -1400A 		2*2W ±25A 各廠家通用：2SP0320x2Ax-122SP0320x2Bx-122SP0320x2Ax-17
Iinfineon：2SP0320x2Ax-FF450R12IE4
2SP0320x2Ax-FF600R12IE4 2SP0320x2Ax-FF900R12IE4
2SP0320x2Ax-FF900R12IP42SP0320x2Ax-FF1400R12IP4
2SP0320x2Ax-FF450R17IE42SP0320x2Ax-FF650R17IE4
2SP0320x2Ax-FF650R17IE4D_B22SP0320x2Ax-FF1000R17IE4
2SP0320x2Ax-FF1000R17IE4D_B22SP0320x2Ax-FF1400R17IP4
Fuji： 2SP0320x2Ax-2MBI900VXA-120E-50
2SP0320x2Ax-2MBI900VXA-120P-502SP0320x2Ax-2MBI1400VXB-120P-50
2SP0320x2Ax-2MBI650VXA-170E-502SP0320x2Ax-2MBI1000VXB-170E-50
2SP0320x2Ax-2MBI1400VXB-170E-502SP0320x2Ax-2MBI1400VXB-170P-50

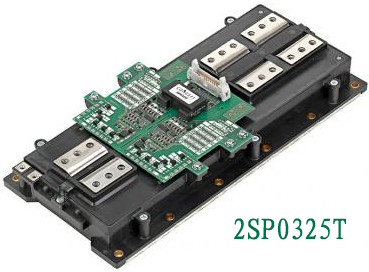

2SP0325 1200V - 1700V
1800A -2500A 		2*2W ±25A Mitsubishi：2SP0325x2Ax-CM2500DY-24S2SP0325x2Ax-CM1800DY-34S

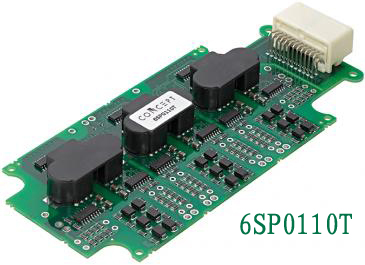

6SP0110T 650V 400A 6信道 ±8A Iinfineon：6SP0110T2Bx-FS400R07A1E3

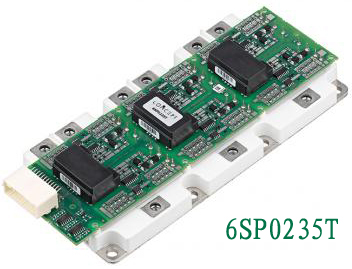

6SP0235T 650V 800A 6信道 ±35A Iinfineon：6SP0235T2Ax-FS800R07A2E3
【SCALE-1 Plug-and-play Drivers】 & 【SCALE-2 Plug-and-play Drivers】 圖片
